Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment

Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment

  • Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment
  • Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment
  • Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment
  • Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment
  • Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment
  • Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment
Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment
商品の詳細:
起源の場所: 中国広州
ブランド名: Anzhe
証明: ISO
モデル番号: AZ-EN09
お支払配送条件:
最小注文数量: 1pcs
価格: 248$/pc 1-19pcs
パッケージの詳細: 24x18x10 cm
受渡し時間: 5〜10日
支払条件: T/T、Western Union、MoneyGram
供給の能力: 1000pcs/月
連絡先
詳細製品概要
名前: マイクロ口頭カメラ 画像の視点: 斜め88
充填光の色温度: 6000K-6500K白色光 出力インターフェイス: USB-Interface UVCカメラ標準プロトコル
イメージセンサー: HD 1/9イメージセンサーチップ、クリア 作業電圧: DC5V
動作電流: <0.14a 使用法: 視覚根管の除去

Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment

The Visual Digital Dental Micro Camera Intraoral Endoscope is a specialized tool used in dentistry, particularly for procedures like root canal treatment. The Visual Digital Dental Micro Camera Intraoral Endoscope is a powerful tool that enhances the capabilities of dental professionals, leading to improved patient outcomes and experiences. As technology continues to advance, these devices are becoming increasingly integral to modern dental practices, ensuring both efficiency and precision in treatments.



Feature of dental micro camera

High-Resolution Imaging:

Provides clear, detailed images of the internal structures of the tooth, allowing for better diagnosis and treatment planning.

Intraoral Design:

Designed to fit comfortably inside the mouth, making it easier for dentists to visualize hard-to-reach areas.

Real-Time Visualization:

Allows for live video feed to be displayed on a monitor, enhancing the dentist's ability to perform intricate procedures.

Micro Camera Technology:

Equipped with advanced micro camera technology that can capture high-definition images and videos.

Lightweight and Ergonomic:

Typically lightweight and designed for ease of handling, reducing fatigue during long procedures.

Compatibility with Dental Software:

Often integrates with dental imaging software for better record-keeping and treatment documentation.

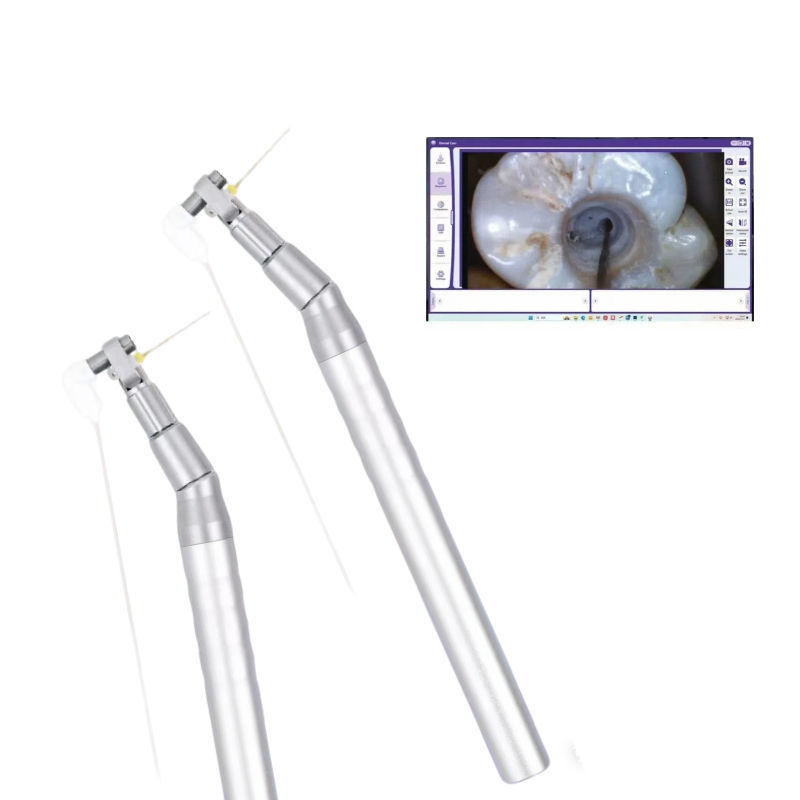

Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment 0

Model Number
AZ-EN09
Image sensor
HD 1/9 image sensor chip
lmage viewing angle
diagonal 88°
lmage format
MJPG YUV2
Working voltage
DC5V



The teachnical date of dental micro camera
lmage sensor: HD 1/9 image sensor chip
Dynamic range: 68DB
lmage viewing angle: diagonal 88°
Fill light color temperature:6000K-6500K white light
lmage format: MJPG YUV2
lmage frame rate: MJPG:30FPS YUV: 10FPS
Output interface:USB-A interface.UVCCamera standard protocol
Working voltage: DC5V
Working current: ≤0.14A

Function of dental micro camera
1. Visual root canal removal
2. Observe root canal orifices in real time
3. Visual mouth mirror
4. Root canal visualization treatment
5. Prevent cervical vertebra
6. Effectively solve the pain points of doctors having to lower their heads while working

Benefits of dental micro camera

Enhanced Diagnosis:

Enables precise identification of issues within the root canal system, such as blockages or infections.

Improved Treatment Outcomes:

By providing real-time feedback, dentists can make more informed decisions during treatment.

Patient Education:

Visual aids can be shown to patients, helping them understand their dental issues better.

Increased Efficiency:

Streamlines the root canal procedure, making it quicker and potentially less painful for patients.

Applications of dental micro camera

Periodontal Procedures:

Assists in assessing gum conditions and deep cleaning procedures.

Oral Surgery:

Aids in visualizing surgical sites for better precision during extractions or implant placements.

Orthodontics:

Can help in monitoring tooth movement and assessing the condition of the mouth during orthodontic treatments.

Patient Education and Marketing:

Dentists can use the captured images for educational purposes, explaining procedures to patients and demonstrating the importance of oral health.

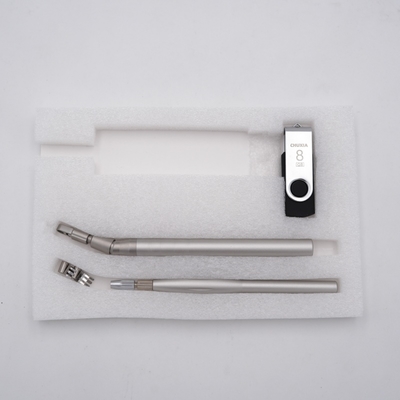

Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment 1

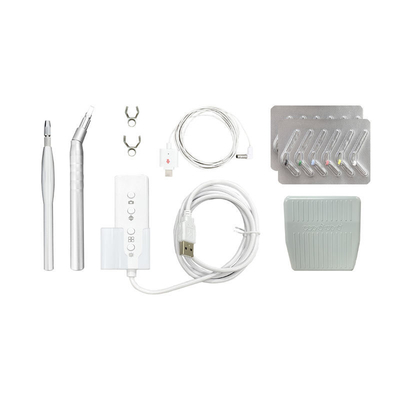

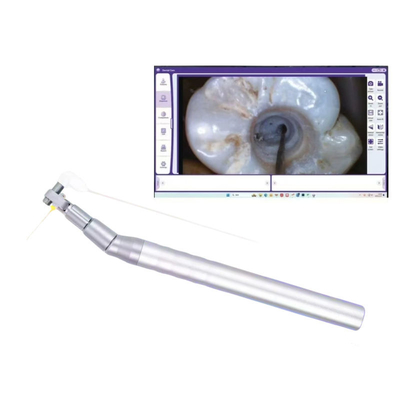

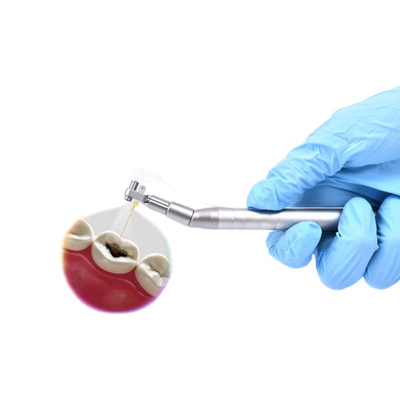

Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment 2Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment 3Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment 4Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment 5Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment 6
Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment 7

Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment 8Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment 9Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment 10Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment 11Visual Digital Dental Micro Camera Intraoral Endoscope for Root Canal Treatment 12
